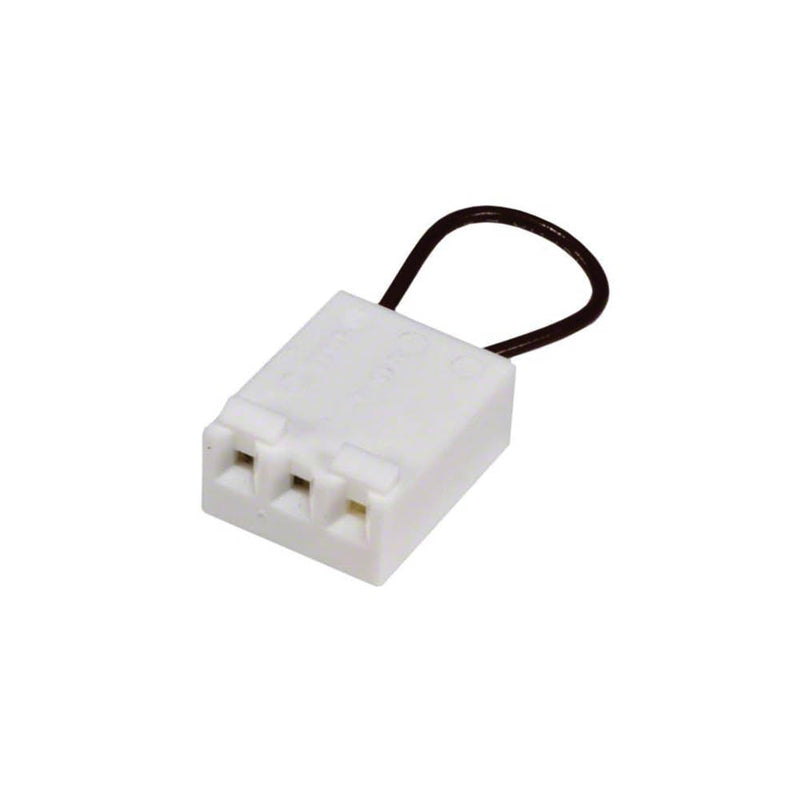

Pressure Switch Bypass Jumper

IMPORTANT: The Pressure Switch Bypass Jumper (PN 72768) is required for all spa models containing a heater without a pressure switch.

Replacement Instructions

1. Disconnect power to the spa
2. Remove equipment compartment door
3. Remove IQ2020 control box cover
4. Plug the Pressure Switch Bypass Jumper onto P34
5. Reconnect power to the spa
6. Check all heater functions to ensure proper jumper connection
7. Re-install IQ2020 control box cover
8. Re-install equipment compartment door

Disposal Instructions

Old pressure switch jumpers can be disposed of in the household trash.
